CHANCS Electric Motor 775 DC Motor 12V 10000RPM 24V 20000RPM with Seat Mounting Bracket Brush Small DC Motor
4.8 (16 items)
Limited Time Sale$10.42 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 207905557 | Release Date | 2026/03/22 | List Price | $6.95 | Model Number | 207905557 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

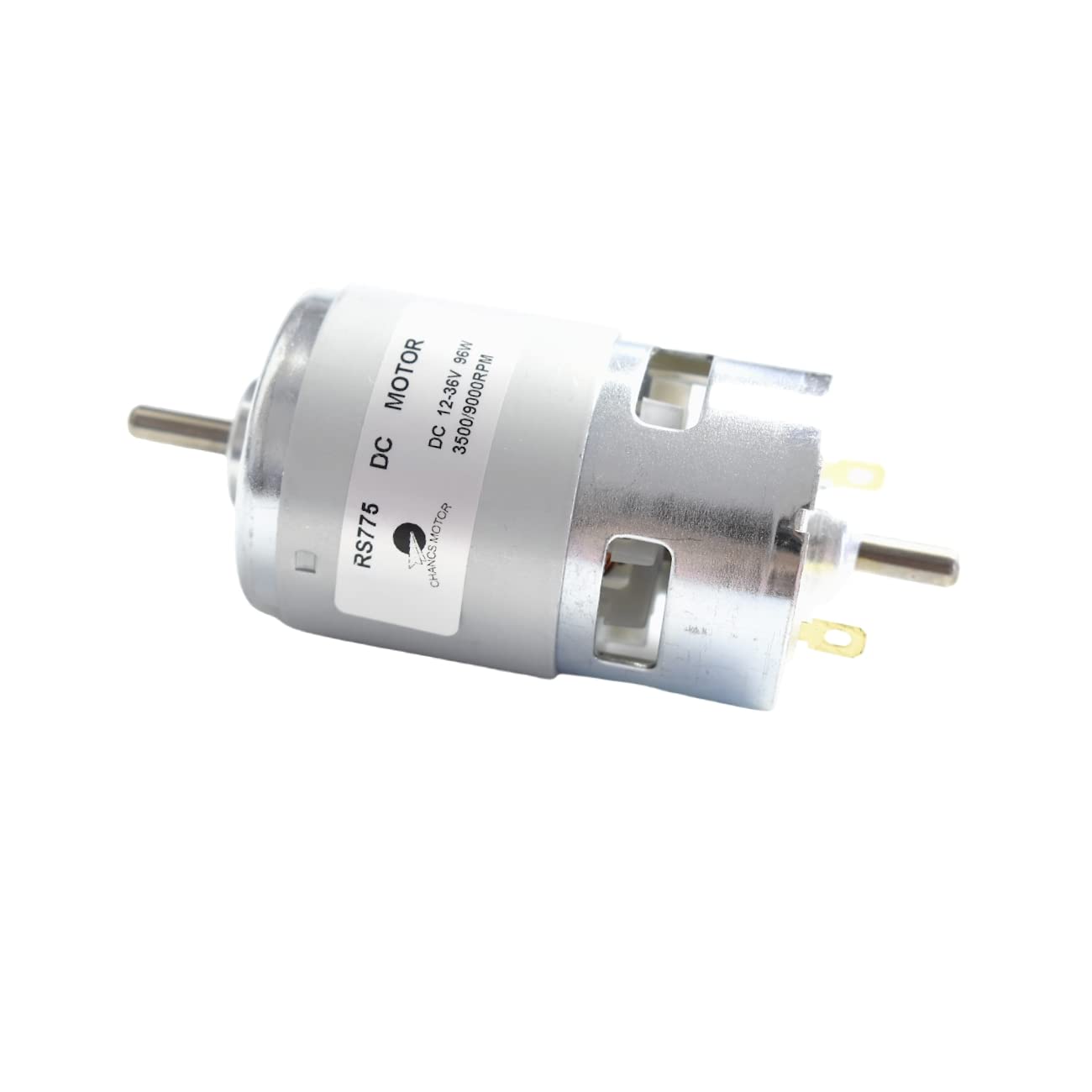

- *This is a 775 DC motor with bracket, the mounting brackets are designed to be used as an additional support for your motors or as an alternative mounting option.

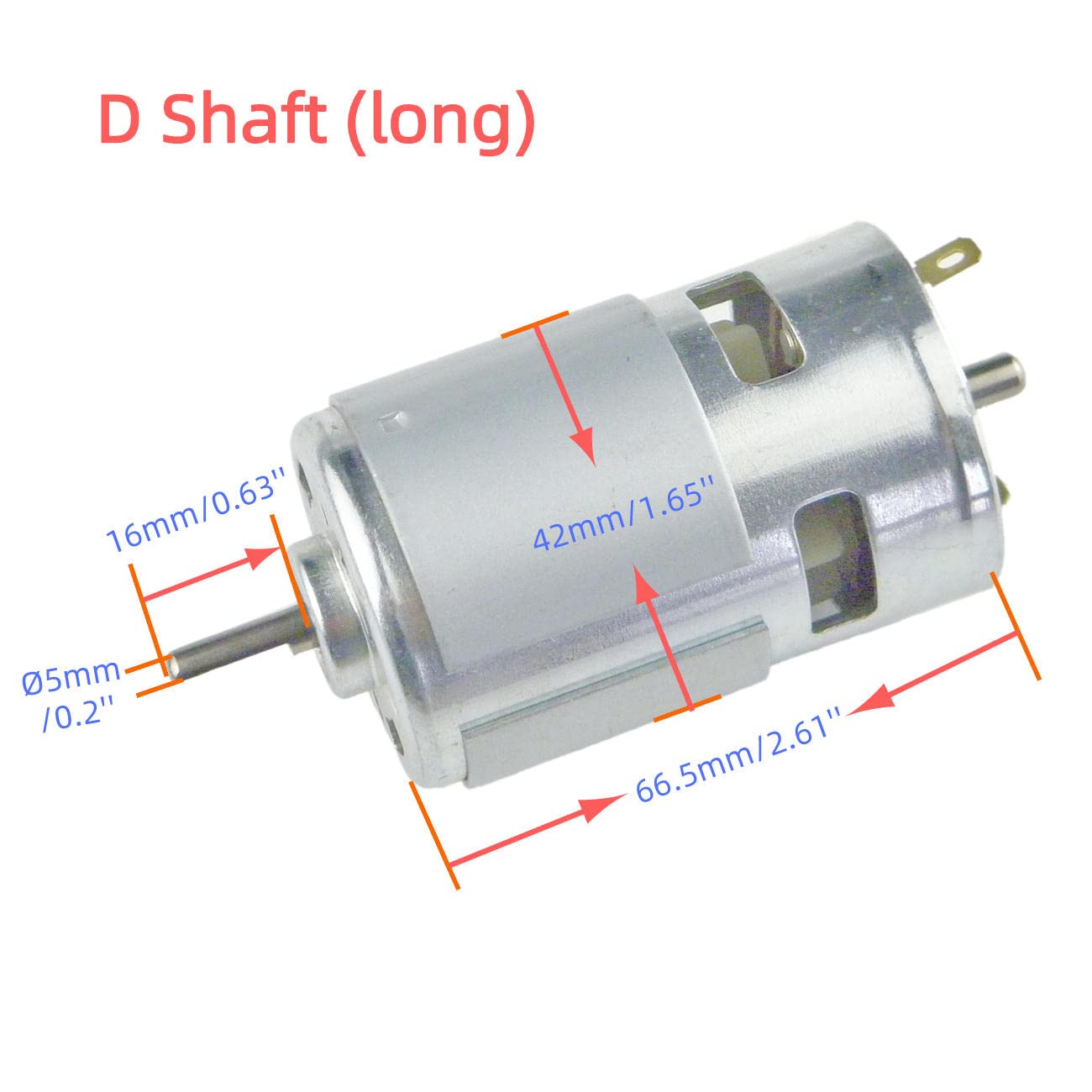

- The specification of motor: 1.Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. 2.Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. 3.Starting current: 4-5A. 4.Motor Body Diameter: 42mm. 5.Motor Body Length: 66.5mm 6.Shaft Length: 16mm, 7.Shaft Diameter: 5mm.

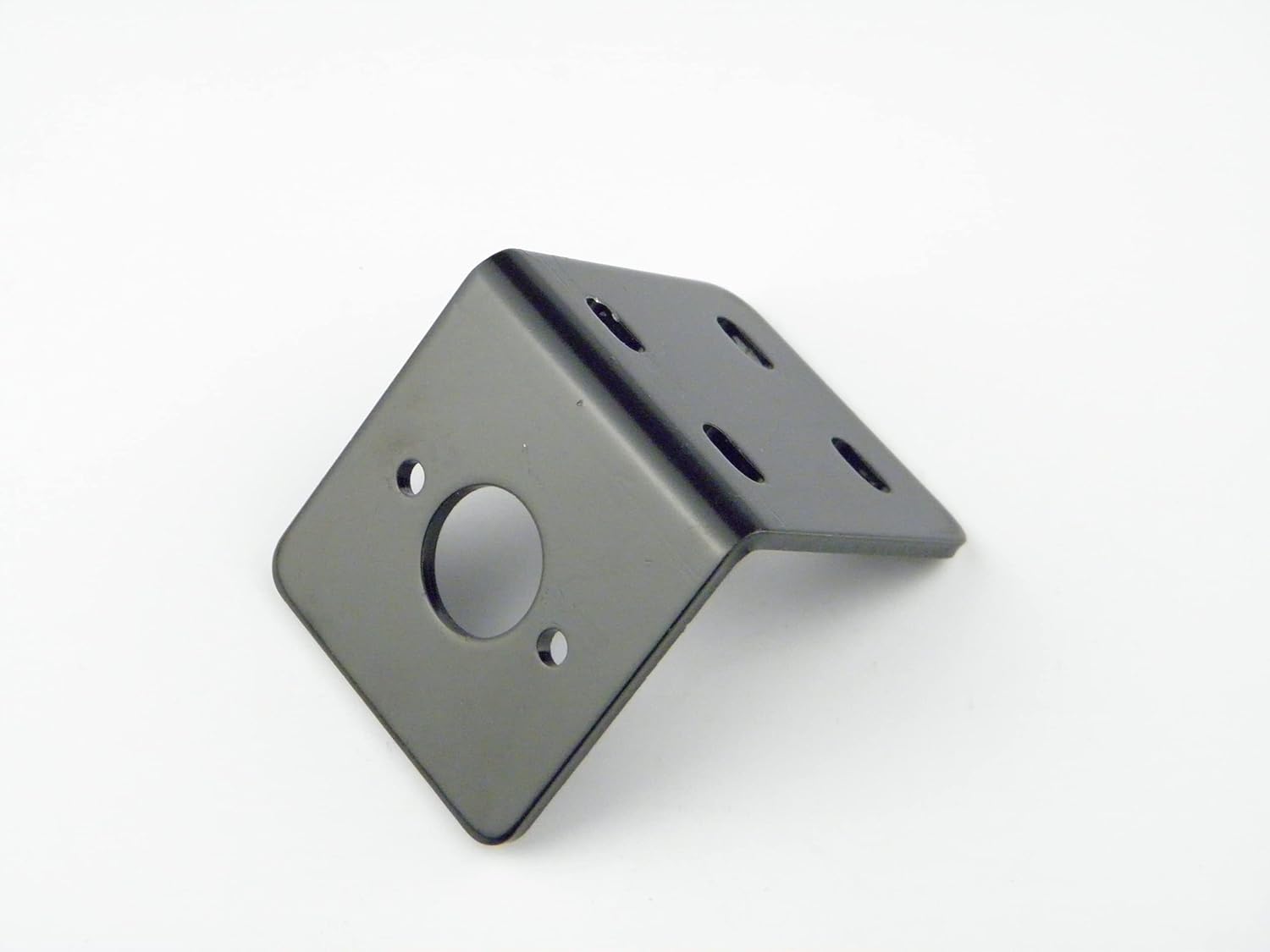

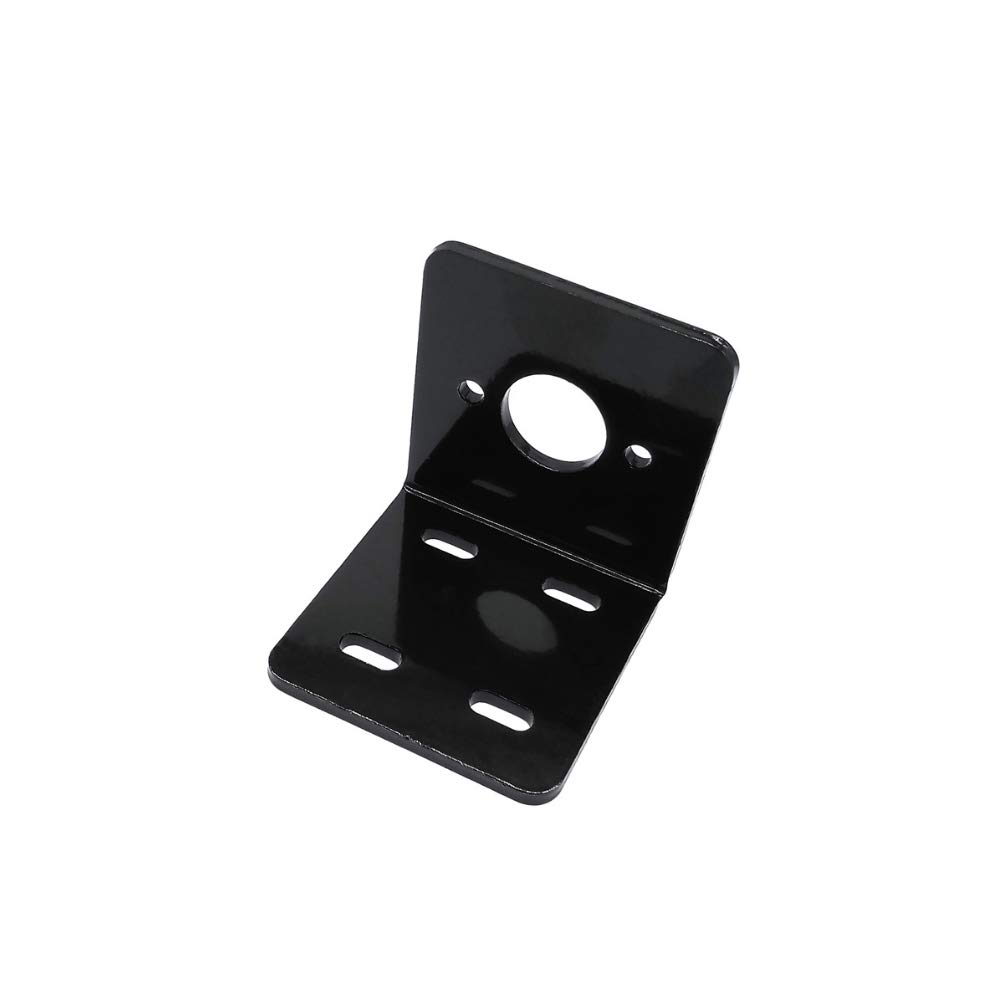

- *The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.
- *Application: Suitable for mini cutting machine, sanding machine, lathe tool, milling machine, bench drill, electric hand drill, polishing machine, electric grinder, engraving machine, etc.
- *Package: 1PC x DC Motor, 1PC x Bracket, 2PCS x Screws
| Manufacturer | CHANCS MOTOR |
|---|---|
| Item model number | 775 Motor |
| Product Dimensions | 1.65 x 1.65 x 2.62 inches; 15.17 ounces |
